JWZ-BMQC3D-1000 Peb-seem Tshuab Moulding Tshuab

Qhov chaw ntawm keeb kwm:

Tuam Tshoj

Hom Npe:

jwell ua

Certification:

CE CE ISO
NCO NTSOOV
  • Paub meej
  • Daim Duab Ua Yeeb Yaj Kiab
  • Kev Tshaj Loj (Competitive Advantage)
  • Ntim & Xa Khoom

hauj lwm:
Kev ua tau zoo thiab qhov zoo

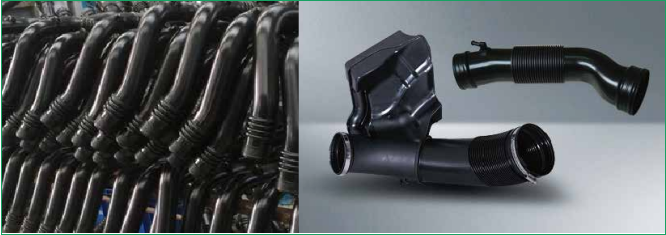

Haum rau kev tsim cov khoom sib txawv ntawm cov yeeb nkab sib txuas ntawm lub tsheb, zoo li cov yeeb nkab roj av rau tsheb, cov yeeb nkab cua thiab lwm yam.
Cov khoom tiav lawm tsawg dua los yog tsis muaj cov khoom seem rau lub zog muaj zog.
Txais yuav cov zis siab extrusion system, sau cov taub hau tuag.


Specifications:

qauv

Tsev

BM3D-1000

Kev voj voog qhuav

Pc / h

180

Tuag lub taub hau qauv

Ntsuas hom

Lub ntsiab ntsia hlau loj

mm

65

Plasticizing muaj peev xwm (PE)

kg / h

70

Tsav tsheb

Kw

22

Accumulating ntim

L

2.5

Roj twj tso kua mis lub cev muaj zog

Kw

15

clamping quab yuam

KN

75

Chaw nruab nrab ntawm platen

mm

300-1100

Platen loj W * H

mm

800*1200

Max.mould loj

mm

600*1100

Platen tsiv stroke

mm

1800

Cua sov zog tuag lub taub hau

Kw

10.7

Tshuab pom dav L * W * H

m

* * 5.4 4.3 3.4

tshuab hnyav

T

10.5

Tag nrho cov hwj huam

Kw

63


Nco tseg: Qhov kev qhia tshwj xeeb yuav hloov pauv yam tsis ceeb toom ua ntej.

1. Jwell yog qhov loj tshaj plaws yas extrusion tshuab chaw tsim tshuaj paus nyob rau hauv Suav teb.Peb ua hauj lwm ze nrog lub ntiaj teb no nto moo hom, koj cov cuab yeej kuj yuav nruab nrog ib tug tivthaiv hom uas koj xav tau.

2. Jwell muaj ntxaib parrel ntsia hlau extrusion xeem kab thiab ib leeg ntsia hlau xeem kab . Peb lub chaw kuaj sim pab txhawb koj kuaj raws li kev tsim khoom tiag tiag nrog rau ntxiv txhim kho koj cov thev naus laus zis los ntawm peb qhov kev sim thiab pab koj xaiv cov khoom siv zoo.

3. Ua haujlwm nrog Jwell koj tuaj yeem ntseeg tau tias koj cov kev pabcuam thiab kev saib xyuas yuav tsum raug sau tseg kom raug thiab tias koj muaj cov peev txheej thiab kev txawj ntse hauv qhov chaw ua ntej pib ua haujlwm. Peb pab neeg muaj kev paub dhau los yuav ua haujlwm nrog koj txhawm rau txheeb xyuas cov neeg, cov peev txheej thiab cov ntaub ntawv txheej txheem uas koj yuav xav tau los txhawb koj cov haujlwm saib xyuas.
4. Jwell muab kev cob qhia kev cob qhia, kev tsav tsheb thiab tshuab rau cov neeg ua haujlwm thiab cov kws tshaj lij los ntawm cov chaw muag khoom los ntawm thoob plaws lub ntiaj teb.

Tag nrho cov tshuab yog ntim los ntawm peb pab neeg ua haujlwm, yuav tau ntim los ntawm ntoo pallet. Rau qee qhov tseem ceeb ntawm cov khoom seem, peb yuav ntim nrog lub thawv ntoo.
